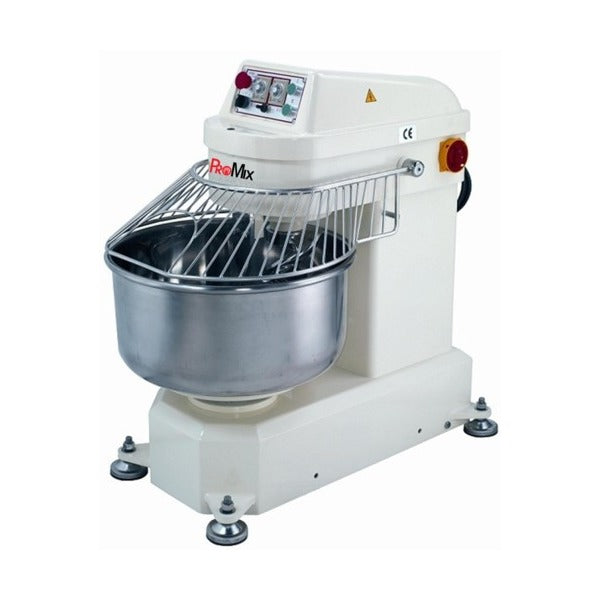

ProMix SM-50 Spiral Mixer

The ProMix Belt-driven Spiral Mixers are specially designed for busy retail bakeries. Heavy-duty and easy to use!

• Bowl capacity: 18kg flour / 30kg wet dough mix / 50L
• Full belt-driven mixer
• Heavy duty design
• 2 Powerful motors, one to drive the spiral arm, one to drive the bowl
• High efficiency 2-speed controls give positive results of dough mixing
• 2 Timers, timer controlled mixing with manual override
• Bowl rotates in both directions
• Strong stainless steel spiral-agitator, guide bar and bowl
• Equipped with overload relay to protect motor and transmission components
• Stainless steel safety wire guard, automatic shut-off when guard is lifted for safety
• Mixer is baked and coated with long lasting and chip-resistant enamel paint

• Model	SM-50
  Max. capacity flour	18 KG
  Max. capacity dough	30 KG (wet dough mix)
  Bowl capacity	50 L
  Dimensions WxDxH (mm)	540 x 950 x 990
  Motors Power	Spiral: 2 HP / Bowl: 1/2 HP
  Voltage	400 V
  Weight	185 KG
